제품일람

   Motor

▲ 비방폭 단상모터 / IP24
Type Normal Voltage
V 		Normal Power
W 		Weight
kg 		Order-No.(without LVR)
B2 Vario 220-230 200 1.8 0002-507

▲ 비방폭 단상모터
Type Normal Voltage
V 		Normal Power
W 		Weight
kg 		Order-No.(without LVR)
MI4 220-230 500 2.8 0030-000
MI4E 220-230 500 2.8 0030-001

▲ 비방폭 단상모터
Type Normal Voltage
V 		Normal Power
W 		Weight
kg 		Order-No.(without LVR)
MAII 3 220-230 460 4.6 0060-000
MAII 5 220-230 575 5.4 0060-001
MAII 7 220-230 795 6.6 0060-002

▲ 방폭 단상모터
Type Normal Voltage
V 		Normal Power
W 		Weight
kg 		Order-No.(without LVR)
MAII 3 220-230 460 5.5 0050-000
MAII 5 220-230 580 6.3 0050-001
MAII 7 220-230 795 7.5 0050-002
ME II 8 220-230 930 8.0 0050-042

▲ NEW(고출력) 에어모터
Type Operating Pressure Power Weight Order-No.
MD1xL 6Bar 1000W [1kw] 1kg 0004-72
MD2xL 6Bar 1000W [1kw] 1.4kg 0004-735

▲ STD Motor
Type Operating Pressure Power 속도조절기능 IP Weight
SP-280P-2 220V 825W No 44 4.5kg
SP-280P-2-V 220V 825W Yes 44 4.5kg

▲ 고점도 3상전기모터
Type Operating Pressure Power Order No.
B70V-D 모터 6Bar 550W 0172-769
B70V-D 모터 6Bar 750W 0172-762
B70V-D 모터 6Bar 1100W 0172-767

▲ 고점도 에어모터
Type Operating Pressure Power Weight Order No.
4DA 6Bar 450W 5kg 0172-821
6DA 6Bar 1000W 10kg 0172-822
8DA 6Bar 1700W 14kg 0172-823
   Tube

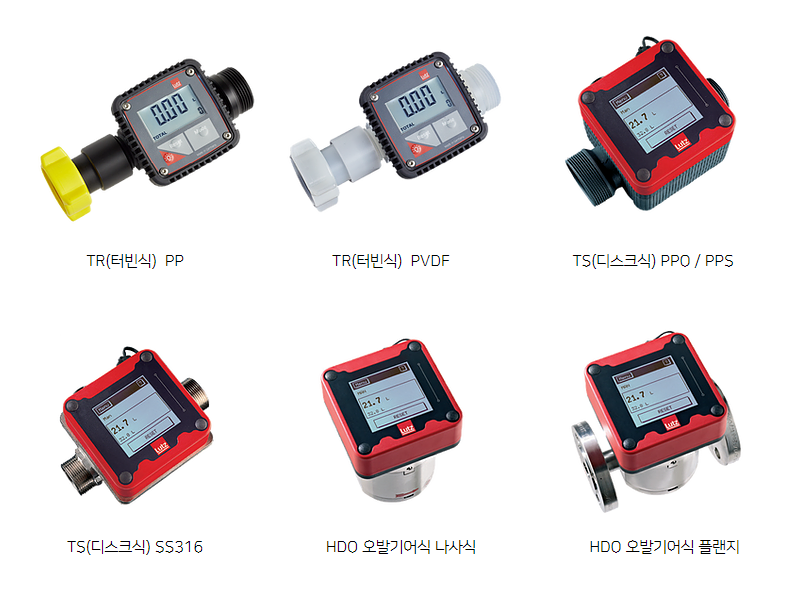

   Flowmeter

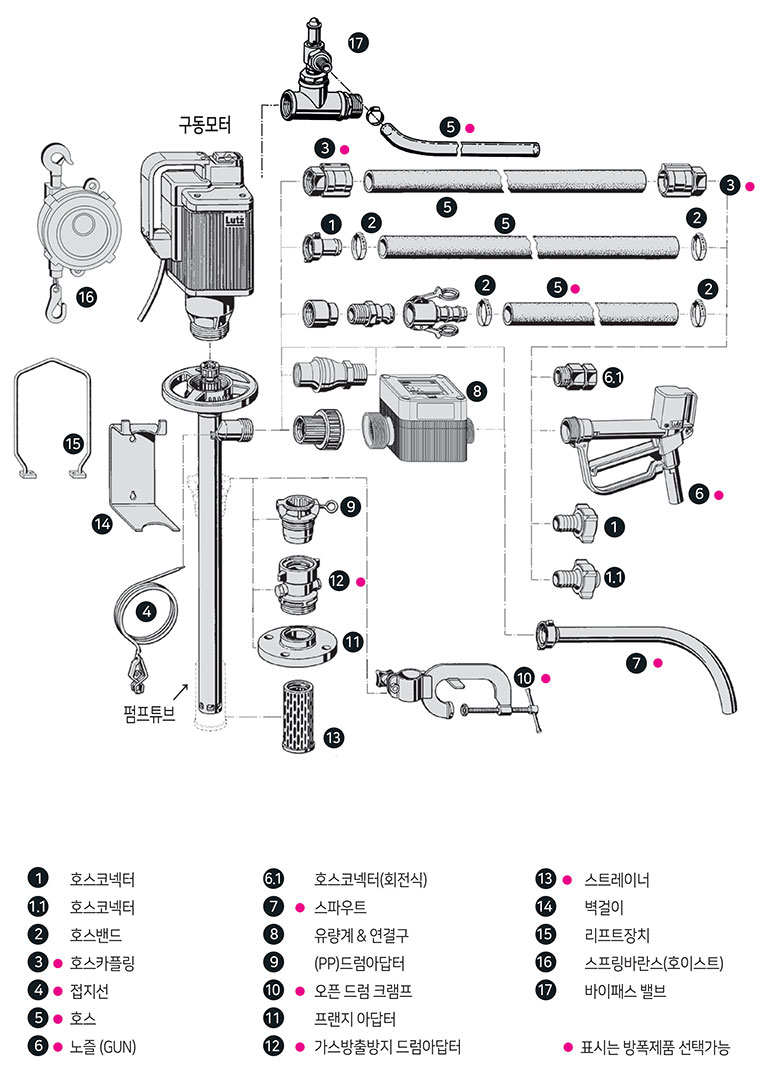

   Accessory
